Bankers Trust Annex Construction Photographs 1931-33
Photo #136
Photograph courtesy The Skyscraper Museum

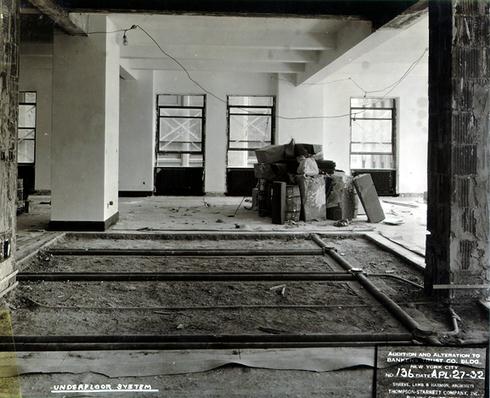

On the upper floors terra cotta tile were used to fireproof the columns. Terra cotta was easily installed where vertical surfaces were required, was lighter than concrete, and provided an excellent surface for the application of plaster. Utilities were distributed throughout each floor in conduits placed over the draped mesh slab and cinder fill. A cinder concrete topping slab--with wood sleepers where a wood finish was specified--was placed over the fill and utilities.
